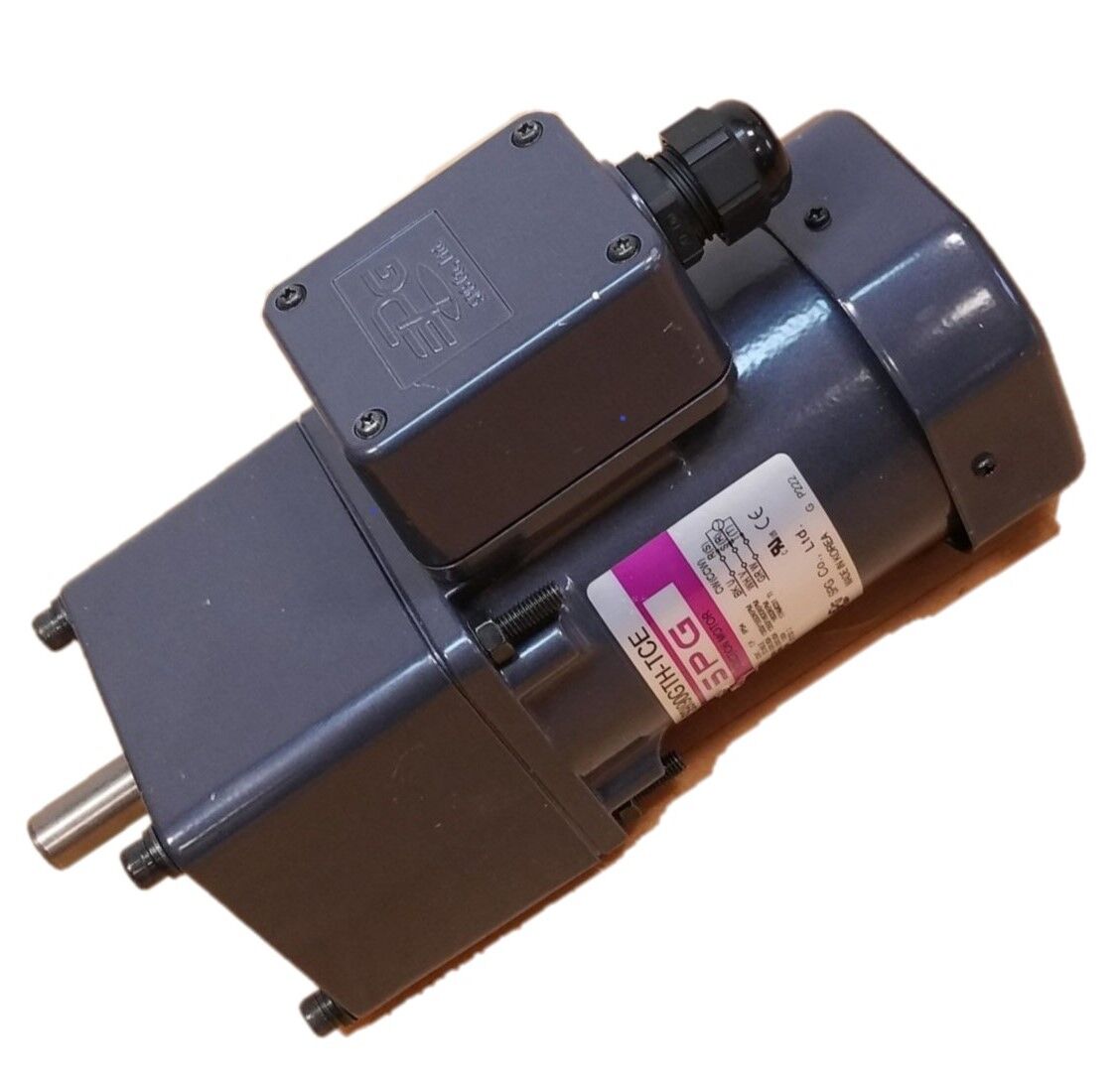

Product Specifications：

Voltage Types: (AC) Single Phase(220V), Three Phase (220V, 380V/440V)

Motor Type: With/Without Brake, Speed Controlled/Fixed Rpm’s Motors

Power Range: 6W-400W

Ratio Range: 1:3~200

Controllers: Digital Panel Controller, Panel Speed Controller, Multi-Function Speed Controller

Body Material: Aluminum

Voltage Type: DC Motors (12V,24V)

Power Range: 10W-300W

Ratio Range: 1:3~200

Product Features：

1. Compact size, 4 screwed holes on gearhead, also can be foostand mounted by L type bracket.
2. All output shaft is integrated by hot extrusion processing, which can afford stronger impact resistance and strength than spline connection
3. All motors be power up to test withstanding voltage, insulation, noise, temperature rising and appearance.
4. 100% copper wire, continuously running is no problem.
5. Special grease be poured into gearhead before delivery, free maintenance.

Product Application：

1. Conveyor system
2. Pharmaceutical machine
3. Automatic Control, Textile Equipment, Conveyor System, Packing Machine
4. Motor, Textile, Printing, Food, Metallurgical,
5. Environmental Protection Engineering, Warehouse Logistics Industry.
