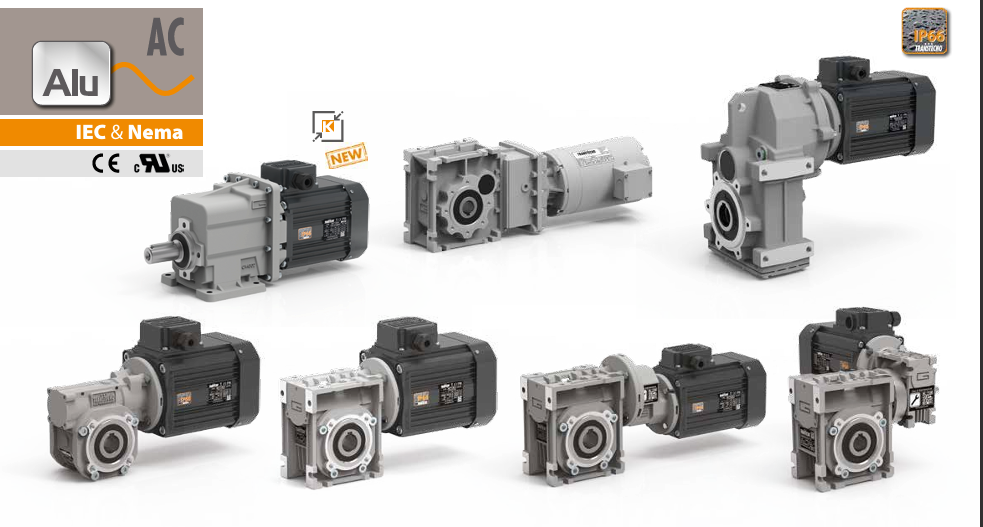

TRANSTECNO CM and CMP worm gear motors deliver high torque, compact design, and exceptional durability for modern industrial needs. These electric motors feature a modular structure, allowing flexible installation and easy integration into different systems like conveyor lines, automated production units, packaging machines, and textile manufacturing equipment.
Built with die-cast aluminum (sizes 026–110) and cast iron housing (size 130), these gear motors ensure maximum strength, shock resistance, and long service life. Every unit passes strict voltage withstand tests, insulation checks, and temperature rise inspections to ensure stable, noise-free, and efficient performance.
Housing Material:
Die-cast aluminum for lightweight durability on sizes 026–110, cast iron on size 130 for heavy-duty use.
Bearings:
Double taper roller bearing on sizes 090, 110, and 130 for improved load capacity and stability.
Gear Ratios:
Standard single gear ratios from 1:5 to 1:100, enabling smooth torque transfer and precision control.
Power Range:
0.06kW to 16.5kW, suitable for light, medium, and heavy industrial operations.
Motor Speed:
Available in 2800RPM, 1400RPM, and 900RPM for various speed and torque requirements.
Motor Types:
Permanent Magnet Motors, Synchronous Motors, Three Phase Motors with Brake — built to support automation and continuous operations.
Voltage Types:
AC Single Phase (220V) and Three Phase (220V, 380V, 440V) for wide compatibility across industries.
High modularity allows flexible mounting and installation.
Compact and robust design fits space-sensitive industrial setups.
Hot-extrusion integrated output shaft offers stronger impact resistance than spline connections.
100% copper wire windings support continuous, reliable operation.
Factory tested for insulation, temperature, noise, and mechanical stability.
Pre-filled with special synthetic grease for smooth, maintenance-free performance.
Long lifespan even in high-load, high-cycle industrial environments.
Conveyor Systems – smooth and efficient material flow in factories and logistics centers.
Textile and Printing Machines – precise speed control for continuous operation.
Food Processing & Packaging Lines – hygienic, reliable, and easy to clean motors.
Pharmaceutical Equipment – supports accuracy and regulatory compliance.
Metallurgical Industry – handles high torque and load conditions with ease.
Environmental Engineering – ideal for wastewater treatment and automation systems.
Warehouse Automation – powers roller conveyors, belt conveyors, chain conveyors, and transfer units.
Long-lasting industrial performance with minimum downtime.
High energy efficiency and low operating cost.
Easy integration with automation and conveyor systems.
Wide voltage and speed options for maximum flexibility.
Backed by TRANSTECNO’s trusted global reputation.
